Capsule Pressure Gauges: An Essential Tool for Low-Pressure Measurement

Capsule pressure gauges are widely used for measuring low-pressure levels in various industrial and laboratory applications. These gauges are specifically designed to provide accurate readings in low-pressure environments where standard pressure gauges might not be effective. In this blog, we will explore what capsule pressure gauges are, how they work, and their key applications in different industries.

What is a Capsule Pressure Gauge?

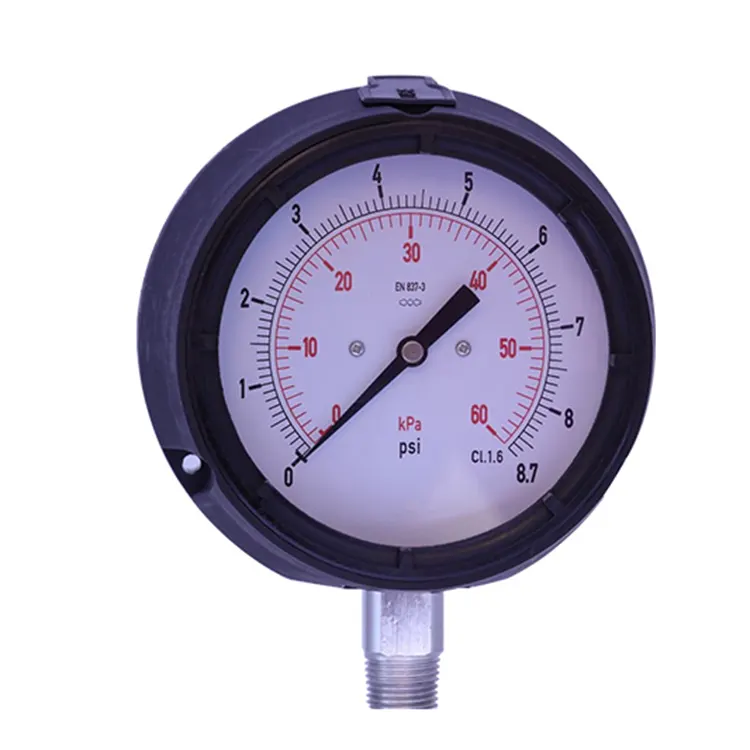

A capsule pressure gauge is a type of mechanical pressure gauge that utilizes a diaphragm-like capsule to measure low-pressure variations, typically in the range of a few millibars to kilopascals. The capsule consists of two thin, corrugated diaphragms joined together, which expand or contract based on the applied pressure. This movement is then translated into a readable pressure value on the gauge’s dial.

How Does a Capsule Pressure Gauge Work?

Capsule pressure gauges operate based on the deformation of a sealed, air-filled capsule. When pressure is applied:

1. The capsule expands or contracts depending on the pressure difference.

2. The movement of the capsule is transferred through a mechanical linkage.

3. This movement is then converted into a readable value on the gauge’s scale.

These gauges are especially suitable for measuring non-corrosive gases and air in low-pressure applications.

Advantages of Capsule Pressure Gauges

- High Sensitivity: Designed specifically for low-pressure applications, ensuring precise readings.

- No Need for External Power: Functions purely on mechanical principles, making it reliable even in remote locations.

- Durability: Constructed with high-quality materials such as stainless steel and brass for long-term use.

- Wide Application Range: Used in industries where low-pressure monitoring is essential.

Common Applications

Capsule pressure gauges are utilized across various sectors, including:

- HVAC Systems: Monitoring air pressure in ventilation and air-conditioning units.

- Medical Equipment: Used in devices like anesthesia machines to ensure accurate gas flow.

- Environmental Monitoring: Measuring air pressure changes in weather stations and laboratories.

- Industrial Processes: Monitoring low-pressure levels in gas pipelines, fuel systems, and chemical plants.

Conclusion

Capsule pressure gauges play a crucial role in ensuring accurate low-pressure measurements across different industries. Their precision, reliability, and mechanical operation make them an indispensable tool for monitoring sensitive pressure variations. If your application involves low-pressure measurement, a capsule pressure gauge is an excellent choice to ensure efficiency and accuracy.
